IG-100 Clean Agent Fire Extinguishing System

IG-100 Clean Agent Fire Extinguishing System is a highly effective, environmentally friendly, and safe gaseous fire suppression solution, widely used in protecting critical facilities where water or traditional agents could cause significant damage.

Here's a comprehensive overview:

1. What is IG-100?
Composition: IG-100 is **pure nitrogen (N₂)**, making up 100% of the agent. Nitrogen is a natural component of air (air is ~78% nitrogen).
Classification: It's an **inert gas clean agent**, meaning it leaves no residue, causes no secondary damage, and is safe for sensitive equipment and occupied spaces when designed correctly.
Mechanism of Action: IG-100 works by **reducing the oxygen concentration** in the protected area from the normal 21% to a level (typically around 12-15%) that is insufficient to support combustion, while still being safe for human occupants for a limited period (following NFPA 2001 or similar standards). This is known as **oxygen reduction** or **inerting**.

2. Key Advantages
Environmentally Friendly**: Zero Ozone Depletion Potential (ODP) and Zero Global Warming Potential (GWP). It's the most environmentally benign clean agent available.
Non-Toxic & Safe for Occupied Spaces**: Since it's pure nitrogen (a major component of air), it is non-toxic. The primary hazard is asphyxiation only if oxygen levels are reduced too far, which is prevented by strict design standards.
No Residue: Leaves no residue, eliminating cleanup costs and preventing damage to sensitive electronics, data, artifacts, or machinery.
Electrically Non-Conductive**: Safe for use on energized electrical equipment.
No Corrosion or Degradation**: Does not corrode metals or degrade materials.
Fast & Effective: Rapidly discharges to achieve fire-safeguarding concentration.
Simple Composition**: Being pure nitrogen simplifies handling and storage.

3. Typical Applications
IG-100 systems are ideal for protecting high-value assets and critical infrastructure:
Data Centers & Server Rooms
Telecommunications Facilities
Control Rooms & Switchgear Rooms
Museums, Archives, and Libraries (protecting valuable artifacts and documents)
Clean Rooms (Pharmaceutical, Semiconductor)
Power Generation & Distribution Facilities
Industrial Process Areas

4. System Components
A typical IG-100 system includes:

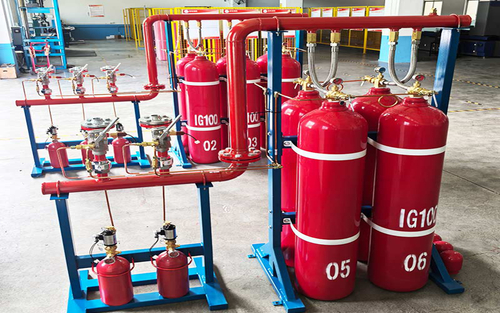

Storage Cylinders: High-pressure steel cylinders filled with liquid nitrogen (though stored as a compressed gas).
Manifold: Connects multiple cylinders to combine their agent volume.
Agent Delivery Piping**: Network of pipes distributing the nitrogen.
Nozzles**: Discharge the agent uniformly into the protected space.
Control Panel**: Monitors detectors and initiates system discharge.
Fire Detection System**: Usually smoke and/or heat detectors to sense a fire.
Activation Devices**: Manual release stations.
Pressure Relief Devices**: Vents to prevent over-pressurization of the room during discharge.
Audible & Visual Alarms**: Warn occupants before discharge (typically 30 seconds pre-discharge warning).

5. Design & Safety Considerations
Room Integrity**: The protected enclosure must be sufficiently sealed to hold the agent concentration for the required time (usually 10 minutes). A "hold time" test is often performed.
Occupant Safety: Design must strictly adhere to safety standards to ensure oxygen levels do not drop below safe limits for evacuation. Pre-discharge alarms are mandatory.
High Pressure: Cylinders store nitrogen at high pressures , requiring proper handling and storage.
Large Volume Requirement**: Because nitrogen is only ~78% of air, a relatively large volume of IG-100 is needed to achieve the necessary oxygen reduction compared to chemical agents. This means more cylinders and potentially higher installation costs/space requirements.

6. Comparison to Other Clean Agents
vs. FM-200 (HFC-227ea): IG-100 is more environmentally friendly (zero GWP vs. 3220 GWP for FM-200) and leaves no decomposition products. FM-200 requires less storage volume.
vs. Novec 1230: Similar environmental benefits (Novec has very low GWP). Novec 1230 works via heat absorption and oxygen reduction, often requiring less agent volume than IG-100.
vs. Inergen (IG-541) Inergen is a mix of Nitrogen (52%), Argon (40%), and CO₂ (8%). The CO₂ component acts as a breathing stimulant, allowing slightly lower oxygen levels to be reached safely. IG-100 requires a larger storage footprint than Inergen for the same space.

In summary, the IG-100 clean agent fire extinguishing system is a premier choice for environmentally conscious, safe, and residue-free fire protection in critical and occupied spaces, particularly where the environmental
