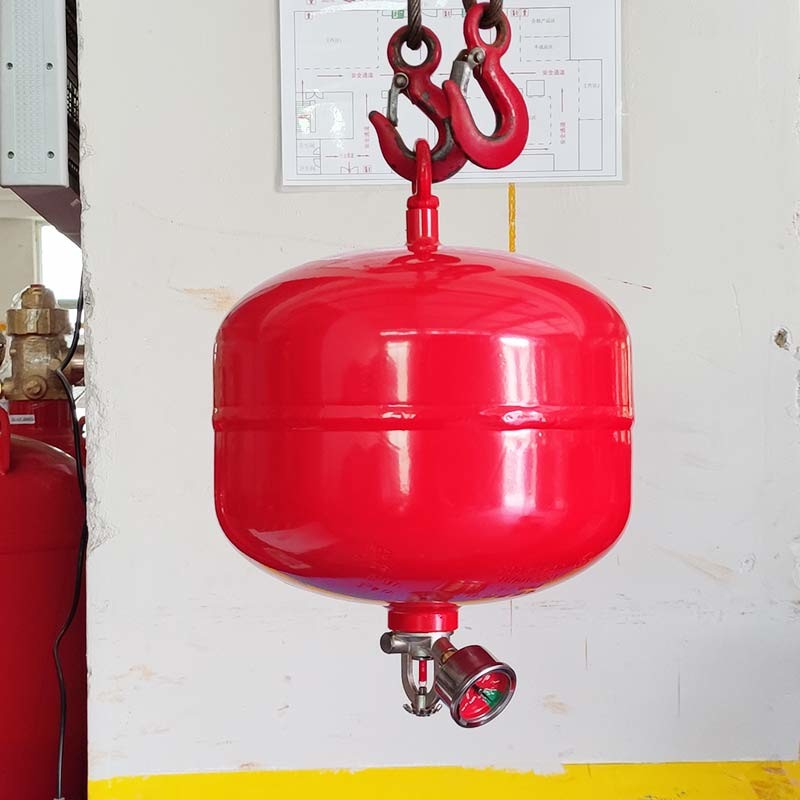

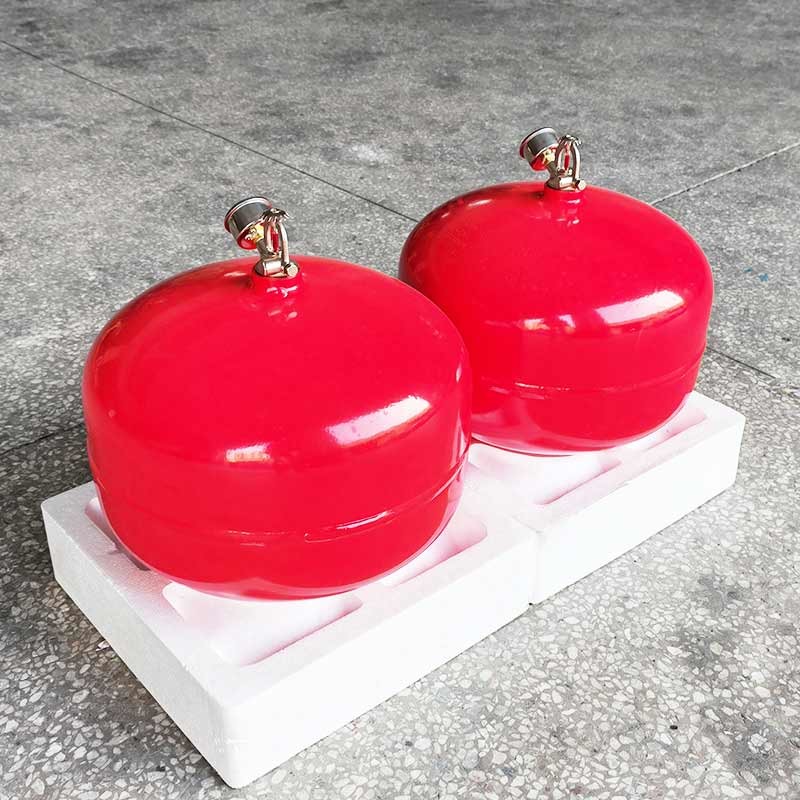

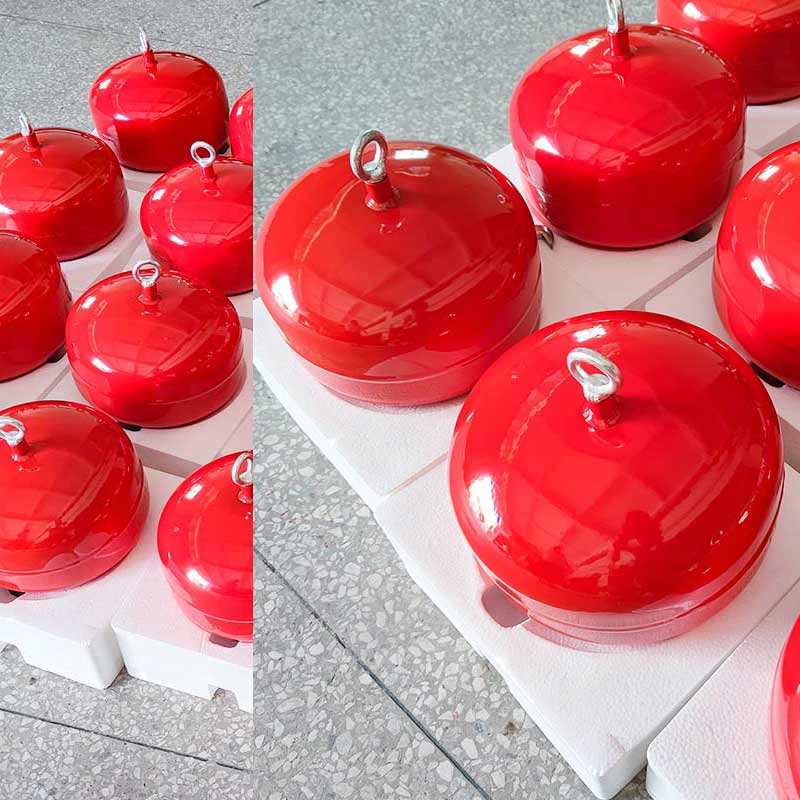

FM200 68°C Temperature Sensing Automatic Gas Fire Extinguisher Cleaner Fire Suppression For Control Room
Technical parameter:
| Model Number |
XQQW8/1.6-XL-06 |
|
Product Name
|
HFC 227ea 68°C Temperature Sensing Automatic Gas Fire Extinguisher
|
|
type
|
suspension
|
| Fire extinguishing method |
Total flooding fire suppression
|
|
Storage pressure
|
1.6MPA(+20°C)
|
|
Working pressure
|
|
|
Filling Density
|
≤1000kg/M³
|
|
working environment temperature
|
|
| Applications |
Control Room
|
| driving gas |
nitrogen |
| Installation mode |
Suspended ceiling |
| start Mode |
temperature induction self-start/Electromagnetic start |
| color |
Red |
Description:
FM200(hfc-227ea) 68°C automatic gas fire extinguisher is a fire extinguishing equipment using FM200 (heptafluoropropane) as a fire extinguishing agent, which can automatically start the fire extinguishing when the ambient temperature reaches 68 degrees Celsius.
peculiarity
Effective extinguishing: FM200 extinguishes flames quickly, usually within 10 seconds.
Clean and environmental protection: FM200 fire extinguishing agent leaves no residue during use and does no damage to the protected items.
Safe and reliable: FM200 fire extinguishing gas is a basically harmless fire extinguishing agent to the human body, and can be used in protected areas with a small number of staff.
Automatic start: Temperature-sensitive fire extinguishers can automatically start extinguishing the fire when the ambient temperature reaches 68 degrees Celsius without manual intervention.
Application:
FM200 68°C temperature sensing automatic gas fire extinguisher is suitable for the need to make a rapid response to the fire, protect on-site operators, sudden fires and other important places, such as computer rooms, data centers, communication rooms, control rooms, dispatch centers, archives, libraries, reference rooms, etc.
The difference with carbon dioxide fire extinguishers
Fire extinguishing principle: FM200 fire extinguishing agent through physical and chemical two ways, while carbon dioxide fire extinguishers mainly through physical means, that is, cooling and asphyxiation.
Application: FM200 fire extinguishers are suitable for a variety of fire types, including electrical fires, liquid fires, etc., while carbon dioxide fire extinguishers are mainly used to extinguish electrical equipment fires and liquid fires, and are not suitable for some solid fires.
Environmental protection: FM200 fire extinguishing agent will not damage the atmospheric ozone layer, and the retention period in the atmosphere is short, and carbon dioxide is a natural gas, but at high concentrations will cause suffocation danger to the human body.
Effects after fire extinguishing: FM200 fire extinguishing agent does not leave residue after use, no damage to the protected items, while carbon dioxide fire extinguishing may leave residue, causing a certain impact on equipment and items.
Storage and maintenance: FM200 extinguishers are typically stored in high-pressure gas form that requires regular checks for pressure and leaks, while CO2 extinguishers are stored in liquid form that also requires regular maintenance but is relatively stable.
