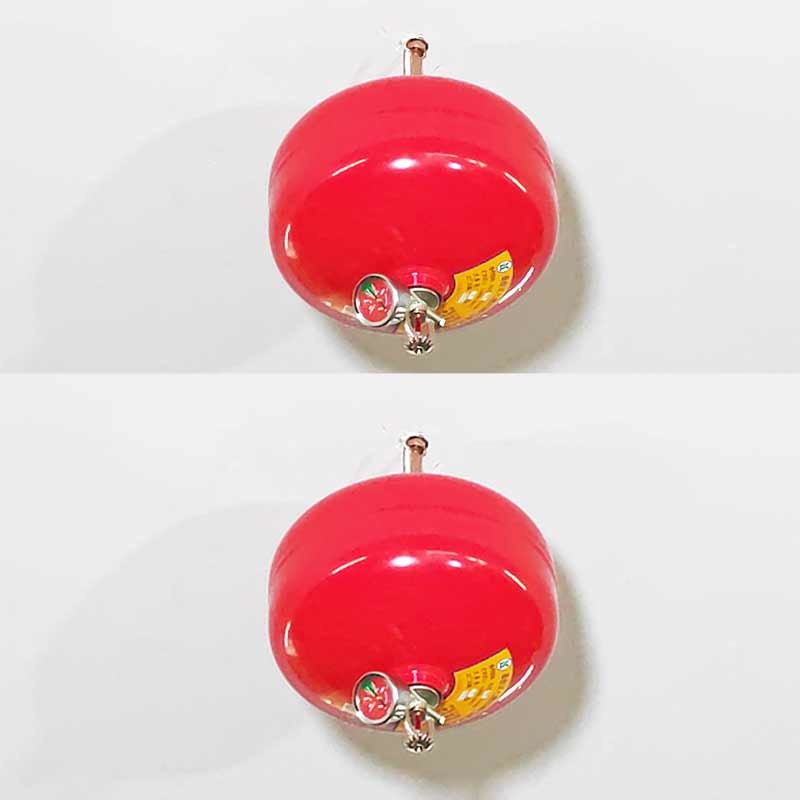

68℃ Temperature Activation FM200 Rapid Fire Reaction Gas Automatic Fire Extinguisher For Electrical Precision Equipment
Technical parameter:
| No |
Specifications |
Parameters |
| 1 |
Tank size |
4Ltr, 6Ltr, 10Ltr, 20Ltr, 30Ltr |
| 2 |
Device model |
XQQW4/1.6-XL-15 |
| XQQW6/1.6-XL |
| XQQW8/1.6-XL |
| XQQW10/1.6-XL |
| XQQW20/1.6-XL |
| XQQW30/1.6-XL |
| 3 |
Storage pressure |
1.6MPA(+20°C) |
| 4 |
Maximum working pressure |
2.5MPA(+50°C) |
| 5 |
Discharge time |
≤10s |
| 6 |
Filling Density |
≤1000kg/M³ |
| 7 |
Activating Temperature |
68℃ |
| 8 |
Applications |
Electrical precision equipment |
Description:
68℃ Temperature Activation FM200 Rapid Fire Reaction Gas Automatic Fire Extinguisher is a cutting-edge solution for fire protection, particularly suited for electrical and precision equipment. This system offers a multitude of advantages over traditional water-based fire extinguishers, making it an optimal choice for modern fire safety needs. Clean and Non-damaging Unlike water-based extinguishers that can leave behind water damage and residue, the FM200 system uses a clean agent that vaporizes completely, leaving no residue and causing no secondary damage. This is especially crucial for protecting sensitive electrical equipment and precision instruments. Rapid Fire Suppression The FM200 system is designed to react swiftly, extinguishing fires in as little as 10 seconds. This rapid response capability significantly reduces the potential for damage and downtime, which is a major improvement over water-based extinguishers that may take longer to suppress fires and can cause more extensive water damage. Non-conductive and Safe FM200 is non-conductive, making it ideal for environments with electrical equipment. Water-based extinguishers, on the other hand, pose a risk of electrical shock when used near live electrical components. The FM200 system ensures safety for both personnel and equipment. Environmentally Friendly FM200 is an environmentally friendly clean agent with zero ozone-depletion potential (ODP) and a short atmospheric lifetime of 31 to 42 years. This makes it a sustainable choice compared to water-based extinguishers, which can contribute to water damage and environmental impact when discharged. Low Toxicity and High Safety FM200 is recognized internationally as a non-toxic fire extinguishing agent at the concentrations used for fire suppression. It is safe for use in occupied spaces, unlike water-based extinguishers that can create slippery surfaces and pose a risk of hypothermia if used in large quantities.
Application:
The FM200 Rapid Fire Reaction Gas Automatic Fire Extinguisher is highly versatile and finds application across various industries where electrical precision equipment is used. One of the most prominent use cases is in data centers and server rooms, which house critical IT infrastructure such as servers, storage systems, and networking equipment. These facilities are essential for supporting cloud computing, financial transactions, and telecommunications services. Any downtime caused by a fire can result in significant financial losses and reputational damage. The FM200 system’s ability to suppress fires rapidly and without leaving residue ensures that servers and other critical equipment remain operational, minimizing disruptions and safeguarding valuable data. In addition to data centers, this advanced fire suppression system is highly effective in industrial control rooms, manufacturing plants, and laboratories. Control rooms, which manage complex machinery and processes, often contain sensitive instruments and high-voltage equipment that are prone to fire hazards. The FM200 system’s rapid response time and ability to suppress fires without damaging equipment make it an ideal solution for protecting these assets.
Company profile:
Guangzhou Xinlin Fire Fighting Equipment Co., Ltd., established in 2017 with a registered capital of RMB 10 million, is a leading provider of advanced fire safety solutions headquartered in Dongzhou Industrial Park, Xintang Town, Zengcheng District, Guangzhou.Committed to innovation and reliability, the company specializes in state-of-the-art clean gas automatic fire extinguishing systems, including FM200(HFC-227ea),Novec1230,IG541 and IG100 systems, complemented by sophisticated gas fire alarm control panels.These products are widely adopted across diverse sectors, such as municipal infrastructure, power plants, telecommunications, healthcare facilities, and construction projects, thanks to their efficiency, safety, and environmental sustainability.
Supported by over 30 patents and a team with more than eight years of collective expertise in fire protection engineering, Xinlin Fire offers comprehensive services spanning system design, engineering, and seamless project execution. The company’s dedication to quality is highlighted by its ISO 9001 certification, UL+FM - listed FM200 Clean Agents, and FM - approved Novec 1230 Clean Agents.Operating from a modern 2398 - square - meter facility, Xinlin Fire integrates automated production lines and cutting - edge testing equipment to ensure consistent, high - quality output.
Globally, Xinlin Fire has established a strong presence in markets spanning New Zealand, El Salvador, Liberia, Rwanda, Kazakhstan, Uganda, and beyond.Its vertically integrated model—encompassing R&D, manufacturing, sales, and after - sales support—enables OEM and ODM project customization.Combining innovative technology, rigorous quality control, and tailored service, Xinlin Fire has earned global praise. Whether for small - scale installations or large industrial projects, the company is dedicated to delivering superior fire safety solutions.We invite you to partner with us and experience the Xinlin Fire difference—where expertise meets innovation.
Frequently Asked Questions:
Q1: Are you a manufacturer or a trading company?
A1: We are a professional manufacturer specializing in gas fire suppression systems.
Q2: Do you offer OEM products?
A2: Yes, we welcome your own designs and drawings.
Q3: Where is your factory located?
A3: Our factory is situated in the East Lake Industrial Park of XinTang Town, Zengcheng District, Guangzhou City, Guangdong Province, China.
Q4: How can I get to your factory?
A4: Due to convenient transportation, you can reach us by taxi or by subway. If taking the subway, please take Line 13 to Shacun Station. Before disembarking, kindly inform us in advance, and we will arrange for a comfortable business van to pick you up from there.
