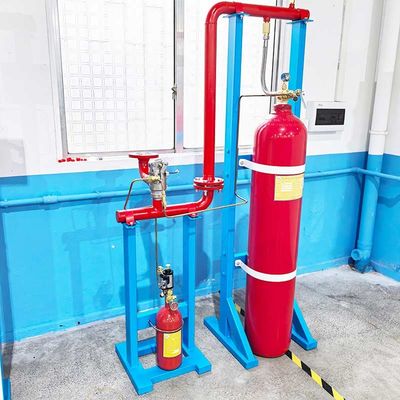

SGS Factory Inspection IG100 Clean Agent Fire Suppression System For High-Voltage Distribution Room
Technical parameter:
| No. |
Product |
IG100 Nitrogen Fire Fighting System |
| 1 |
Capacity |
70ltr,80ltr,90ltr |
| 2 |
Working Pressure |
20MPa |
30MPa |
| 3 |
Device Model |
QMH20/90 |
QMH30/90 |
| 4 |
Model Number |
QMD20/90-XL-01 |
| 5 |
Discharge Time |
≤60S |
| 6 |
Working pressure and temperature |
0~50℃ |
| 7 |
Driving Bottle Group Pressure |
23.5MPa |
| 8 |
Maximum Working Pressure at 50℃ |
237.5kg/M³ |
| 9 |
Fire Extinguishing Method |
Full Flooding |
| 10 |
Activation Method |
Automatic, Pneumatic, Manual, Mechanical Emergency Operation |
| 11 |
Applications |
High-Voltage Distribution Room |
Description:
IG100 Clean Agent Fire Suppression System stands out in the market due to its unique properties and advantages. This system utilizes 100% pressurized nitrogen as the extinguishing agent, which is not only environmentally friendly but also highly effective in suppressing Class A, B, and C fires2. Unlike traditional foam fire extinguishers, the IG100 system leaves no residue after discharge, ensuring a clean and safe environment3. Additionally, nitrogen is electrically non-conductive, making it extremely safe for use in areas with sensitive electrical equipment6. Furthermore, the IG100 system does not produce any decomposition products, fog, or impair vision post-discharge, which are common issues with foam extinguishers. Overall, the IG100 system offers a more efficient, safer, and eco-friendly solution compared to foam fire extinguishers.
Application:
IG100 Clean Agent Fire Suppression System is engineered to address the unique risks and operational demands of high-voltage distribution environments:
1. Power Plant Switchyards
In utility-scale power plants, high-voltage switchyards house circuit breakers, transformers, and relay systems operating at 110kV–500kV. A fire here could disrupt regional power supply. The IG100 system’s enclosed flooding design ensures uniform agent distribution, suppressing Class C (energized electrical) fires without de-energizing the grid—a critical advantage over foam systems that require shutdowns for safe deployment.
2. Industrial Substations
Manufacturing facilities with on-site high-voltage substations face fire risks from transformer oil leaks or capacitor bank failures. The IG100 clean agent fire suppression system detects incipient fires via thermal imaging sensors and activates automatically, preventing explosions and containing fires within isolated compartments. This minimizes collateral damage to adjacent production lines, which rely on uninterrupted power.
3. Commercial High-Rise Electrical Rooms
In skyscrapers, high-voltage distribution rooms located in basements or penthouses require fire protection that won’t damage building infrastructure. The IG100 system’s low-pressure nitrogen delivery avoids pressure surges that could crack concrete or damage ductwork, unlike foam systems that use high-pressure pumps. Its eco-friendly agent also eliminates risks of water runoff contaminating groundwater.
4. Renewable Energy Facilities
Solar and wind farms’ high-voltage collection systems and inverter stations are vulnerable to arc faults. The IG100 clean agent fire suppression system’s rapid response and non-destructive properties protect expensive renewable energy equipment, such as solar inverters and wind turbine transformers, ensuring minimal downtime for energy production.
Company profile:
Guangzhou Xinlin Fire Fighting Equipment Co., Ltd., established in 2017 with a registered capital of RMB 10 million, is a leading provider of advanced fire safety solutions headquartered in Dongzhou Industrial Park, Xintang Town, Zengcheng District, Guangzhou. Committed to innovation and reliability, the company specializes in state-of-the-art clean gas automatic fire extinguishing systems, including FM200(HFC-227ea),Novec1230,IG541 and IG100 systems, complemented by sophisticated gas fire alarm control panels.These products are widely adopted across diverse sectors, such as municipal infrastructure, power plants, telecommunications, healthcare facilities, and construction projects, thanks to their efficiency, safety, and environmental sustainability.
Supported by over 30 patents and a team with more than eight years of collective expertise in fire protection engineering, Xinlin Fire offers comprehensive services spanning system design, engineering, and seamless project execution. Operating from a modern 2398 - square - meter facility, Xinlin Fire integrates automated production lines and cutting - edge testing equipment to ensure consistent, high - quality output.
The company's production system has passed the dual certifications of the internationally authoritative SGS factory inspection certification and the German TÜV Rheinland factory inspection. At the same time, it has obtained ISO 9001 (Quality Management System), ISO 14001 (Environmental Management System), and ISO 45001 (Occupational Health and Safety Management System). Ensure that every link of the product from production to delivery complies with international standards. In addition, we also provide Chemical Data Sheets (MSDS) to comprehensively ensure the compliance and safety of product transportation, storage and use. Choosing us means choosing professionalism and trust.
