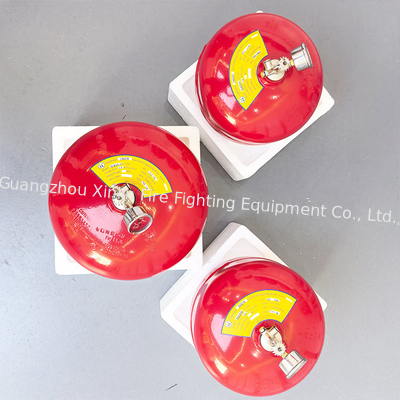

FM200 Automatic Fire Extinguisher – Ceiling-Mounted 68°C Thermal Activation Unit For Unmanned Server Room

FM200 Automatic Fire Extinguisher – Ceiling-Mounted 68°C Thermal Activation Unit for Unmanned Server Room

Technical parameter:

Description:

FM200 Automatic Fire Extinguisher redefines fire safety in high-risk electrical environments with its fully passive, ceiling-mounted design that requires no power supply, control panel, or external detection loop. Unlike conventional automatic fire suppression systems that depend on electrical signals and complex integration, this unit operates through a purely physical principle: a precision-engineered fusible link calibrated to rupture exactly at 68°C (154.4°F)—a temperature threshold proven to coincide with the rapid thermal rise of early-stage electrical fires, while avoiding false activation from normal equipment heat dissipation.

Upon thermal trigger, the sealed FM200 (HFC-227ea) clean agent is instantly discharged , suppressing flames within seconds by interrupting the fire’s chemical chain reaction. As a gas-phase extinguishing agent, it leaves no residue, conducts no electricity, and causes zero damage to sensitive circuitry—making it ideal for protecting live, operational equipment.

Application scenarios :

In scenarios such as server rooms, communication base stations, and UPS distribution rooms that operate 24 hours a day and where personnel are prohibited from entering, the value of the FM200 automatic fire extinguisher is particularly prominent:

1. Data Center: "Zero-risk" protection of core assets
Pain point: High-density deployment of server clusters, local overheating may cause chain fires; Manual inspection has blind spots, and traditional smoke detectors have lagging alarms.
Solution
Suspended installation above the cabinet, the 68℃ temperature sensor probe directly faces the heat source, achieving "point-to-point" precise fire extinguishing.
It is linked with the environmental monitoring system (DCIM). Once triggered, it will automatically shut down the air conditioning in the computer room and cut off unnecessary power supplies to prevent the spread of fire.
Case: After a certain cloud computing center deployed the FM200 system, it successfully extinguished a fire on a single server without affecting the operation of other cabinets, saving over 2 million yuan in downtime losses annually.

2. Communication Base Stations: "Autonomous Fire Protection" in Remote Areas
Pain points: Base stations are widely distributed, in harsh environments, and have high manual maintenance costs. Traditional fire extinguishers need to be inspected regularly and are prone to failure due to negligence.
Solution
The FM200 gas cylinder is designed with corrosion resistance and is suitable for extreme environments ranging from -40℃ to 60℃.
The temperature-sensing trigger mechanism does not rely on electricity and can still operate normally even if the mains power is interrupted.
Case: A certain operator deployed the FM200 system at a base station in the mountainous area of Northwest China. Within three years, it automatically handled five electrical fires, avoiding the response delay caused by manual on-site visits.

3. Industrial UPS Room: "Invisible Insurance" for High-Value Equipment
Pain point: High risk of overcharging and short circuit of UPS battery packs; Water-based fire extinguishers can damage the battery electrolyte, and dry powder residue can cause poor contact.
Solution
FM200 has excellent gas insulation performance and does not require cleaning after fire extinguishing, ensuring the rapid restoration of power supply to the UPS system.
The compact design can be concealed within the ceiling and does not occupy equipment space.

Company profile:

Guangzhou Xinlin Firefighting Equipment Co., Ltd. holds over 30 technical patents and has a professional team with more than ten years of industry experience, providing comprehensive support from scheme design, project installation and commissioning to remote technical services. The company has a modern production base covering an area of 2,398 square meters, equipped with automated production lines and advanced testing equipment to ensure high-quality output at every stage.
In terms of quality management, the company has passed:
Dual factory inspection certifications by SGS and German TUV Rheinland
ISO 9001 Quality Management System
ISO 14001 Environmental Management System
ISO 45001 Occupational Health and Safety Management System
With its outstanding fire extinguishing efficiency, environmental friendliness and system reliability, the product is widely used in key places such as data centers, power facilities, archives, medical institutions, rail transit and commercial buildings.
At present, we offer a range of commonly used clean gas fire extinguishing systems, including FM200 fire extinguishing systems, Novec 1230 (Fk-5-1-12) fire extinguishing systems, fully automatic FM200 fire extinguishers (ceiling-mounted), IG541 fire extinguishing systems, and IG100 fire extinguishing systems. Fire detection tube fire extinguishing system and high-pressure pipeline (CO₂) fire extinguishing system.
