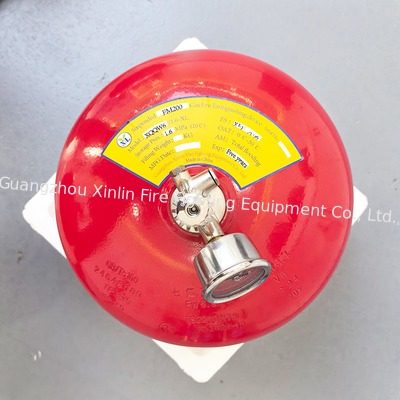

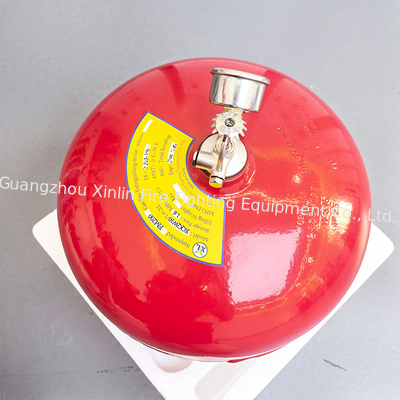

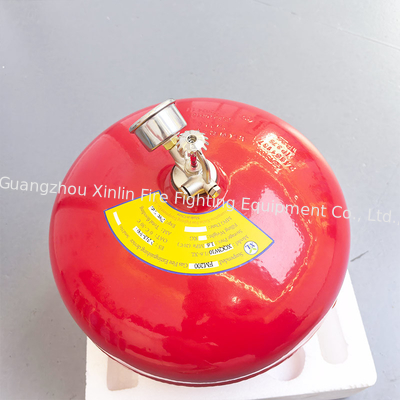

FM200 Automatic Fire Extinguisher – Self-Actuating Hanging Unit With Zero Residue Protection For Unmanned Spaces

FM200 Automatic Fire Extinguisher – Self-Actuating Hanging Unit with Zero Residue Protection for Unmanned Spaces

Technical parameter:

Description:

In industrial environments where personnel are prohibited from entering and equipment operates 24 hours a day, traditional fire-fighting measures are gradually revealing their limitations due to their reliance on manual response or the risk of secondary damage. The FM200 automatic fire extinguisher, through the 68℃ precise temperature-sensing glass ball triggering technology and the suspended structure design, has built a fully autonomous fire protection system of "perception - response - fire extinguishing". Its core breakthrough lies in:

Self-sensing and self-starting: Equipped with a 68℃ temperature sensing element, it does not require external power supply or signal input. When the temperature reaches the critical value, the glass bulb automatically breaks, driving nitrogen to release heptafluoropropane (HFC-227ea) fire extinguishing agent. The entire response time is ≤8 seconds, which is more than 10 times faster than the traditional smoke alarm + manual intervention mode.
Zero residue and non-destructive fire extinguishing: Heptafluoropropane diffuses in gaseous form. After fire extinguishing, there are no solid particles, no liquid residue, and it does not conduct electricity. It is especially suitable for electronic equipment such as servers, PLC control cabinets, and precision instruments, avoiding secondary losses caused by dry powder corrosion or water-based conductivity.

Application scenarios :

The value of the FM200 automatic fire extinguisher lies in resolving the dual contradiction of "personnel being unable to intervene in time" and "equipment being sensitive to fire extinguishing agents". Its application scenarios have broken through the traditional scope of machine rooms and extended to the following high-demand fields:

New energy power stations: The "Fireproof Necessity" of Energy Storage Containers
Pain point: The thermal runaway temperature of lithium batteries can reach over 300℃, but early overheating (60-80℃) is the only intervention window. Traditional fire extinguishers require manual approach for operation and pose an explosion risk.
Solution
Suspend the FM200 fire extinguisher from the top of the energy storage cabinet, with the temperature sensor facing the battery cell module directly. When triggered at 68℃, the gas is directly injected into the battery compartment, reducing the oxygen concentration to below 15% within 8 seconds and suppressing the chain reaction of thermal runaway.
It is linked with the BMS system. Once triggered, it automatically cuts off the power supply of the battery pack to prevent re-ignition.
Case: After the FM200 system was deployed in a certain photovoltaic energy storage project, an early fire in a single cabinet was successfully extinguished, avoiding a loss of 20 million yuan for the entire station. Moreover, the battery pack was found to have no performance degradation after testing.

Company profile:

Guangzhou Xinlin Firefighting Equipment Co., Ltd. holds over 30 technical patents and has a professional team with more than ten years of industry experience, providing comprehensive support from scheme design, project installation and commissioning to remote technical services. The company has a modern production base covering an area of 2,398 square meters, equipped with automated production lines and advanced testing equipment to ensure high-quality output at every stage.
In terms of quality management, the company has passed:
Dual factory inspection certifications by SGS and German TUV Rheinland
ISO 9001 Quality Management System
ISO 14001 Environmental Management System
ISO 45001 Occupational Health and Safety Management System
With its outstanding fire extinguishing efficiency, environmental friendliness and system reliability, the product is widely used in key places such as data centers, power facilities, archives, medical institutions, rail transit and commercial buildings.
At present, we offer a range of commonly used clean gas fire extinguishing systems, including FM200 fire extinguishing systems, Novec 1230 (Fk-5-1-12) fire extinguishing systems, fully automatic FM200 fire extinguishers (ceiling-mounted), IG541 fire extinguishing systems, and IG100 fire extinguishing systems. Fire detection tube fire extinguishing system and high-pressure pipeline (CO₂) fire extinguishing system.

Frequently Asked Questions:

Q1: Are you a manufacturer or a trading company?
A1: We are a professional manufacturer specializing in gas fire suppression systems.

Q2: Do you offer OEM products?
A2: Yes, we welcome your own designs and drawings.

Q3: Where is your factory located?
A3: Our factory is situated in the East Lake Industrial Park of XinTang Town, Zengcheng District, Guangzhou City, Guangdong Province, China.

Q4: How can I get to your factory?
A4: Due to convenient transportation, you can reach us by taxi or by subway. If taking the subway, please take Line 13 to Shacun Station. Before disembarking, kindly inform us in advance, and we will arrange for a comfortable business van to pick you up from there.
